CNC programming refers to the process of creating instructions or code that is used to control computer numerical control (CNC) machines. CNC machines are automated manufacturing tools that perform precise and complex operations on various materials, such as cutting, milling, and drilling.
CNC programming involves writing a series of commands, typically in the form of a programming language, G-code, that specifies the actions the CNC machine should take. These commands include information about tool movements, spindle speeds, feed rates, tool changes, and other parameters necessary to carry out a specific machining operation.
CNC programming software refers to computer programs that are used to create, edit, simulate, and manage CNC programs. These software tools provide a graphical interface and a range of features to facilitate the programming and control of CNC machines.
Software used for CNC programming can vary depending on the machine type, manufacturer, and the specific needs of the user or organization. Different software tools offer varying levels of functionality, compatibility, and ease of use, so it's crucial to select the appropriate software that suits the requirements and capabilities of your CNC machine.
CNC programming is important because it empowers manufacturers to achieve higher levels of automation, precision, efficiency, and flexibility in their machining operations. It enables the production of complex parts with consistency, quality, and speed, making it a fundamental component of modern manufacturing processes.
G-code is a programming language used to control computer numerical control (CNC) machines. It consists of a series of commands or instructions that tell the CNC machine how to move, position, and operate its various components, such as the cutting tool, spindle, and auxiliary functions.
G-code commands are typically represented by a combination of letters and numbers. Each command has a specific function and is executed sequentially by the CNC machine. The G-code commands cover a wide range of operations, including tool movements, spindle speed, feed rates, tool changes, coolant control, and more.

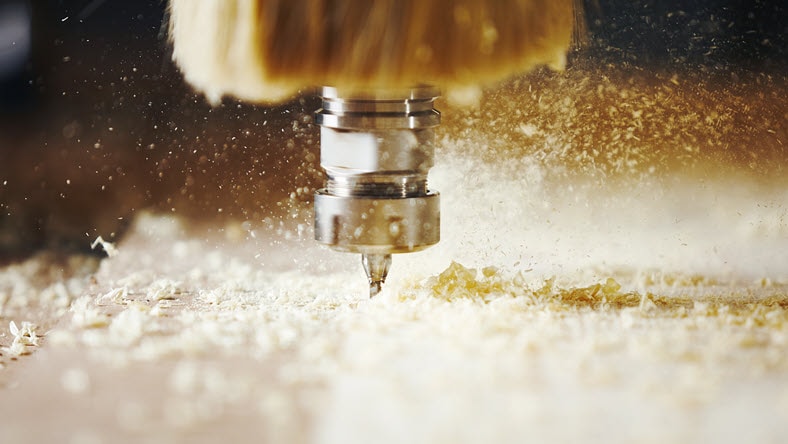

CNC routers are commonly used in woodworking and can range in size and style from a desktop 3-axis to a room-sized 5-axis configuration.

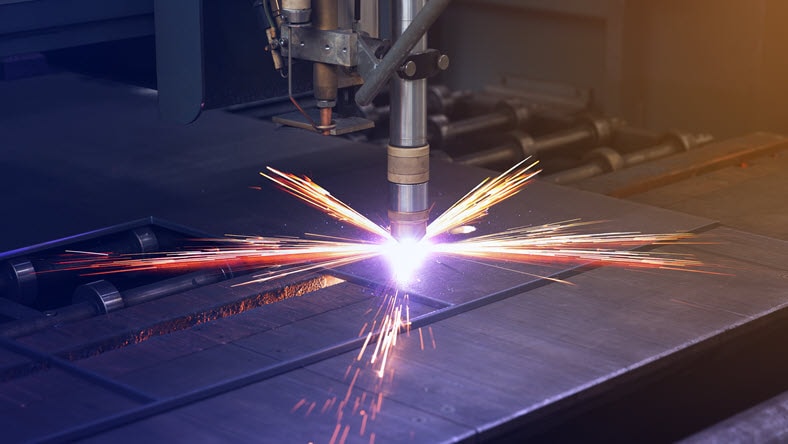

CNC plasma cutters are used to cut conductive metals using a jet of hot plasma. These CNC machines offer high precision at low cost.

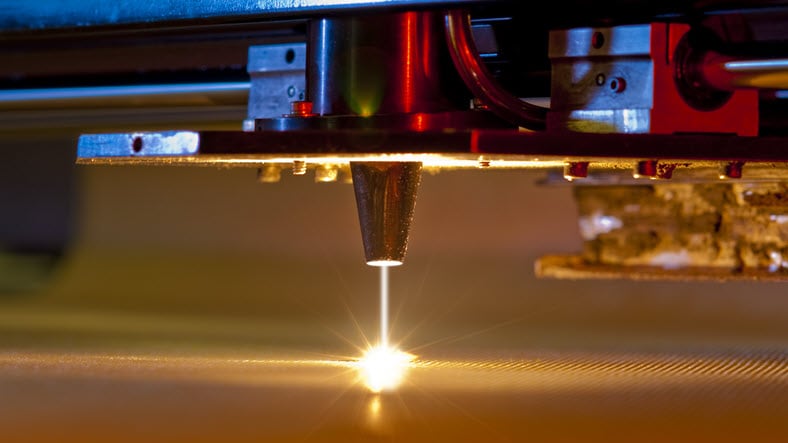

Laser cutters can be used to cut various types and thicknesses of materials, even metal, depending on the power of the laser.

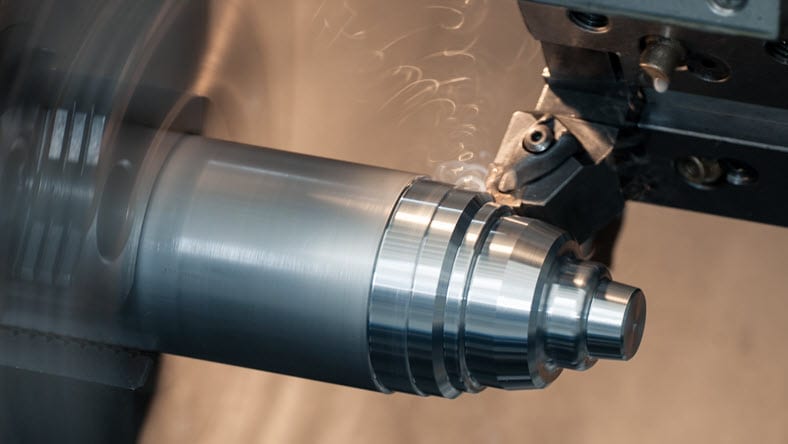

CNC lathes rotate the workpiece and apply various cutting tools to create parts with a revolved profile. These are often programmed by hand.

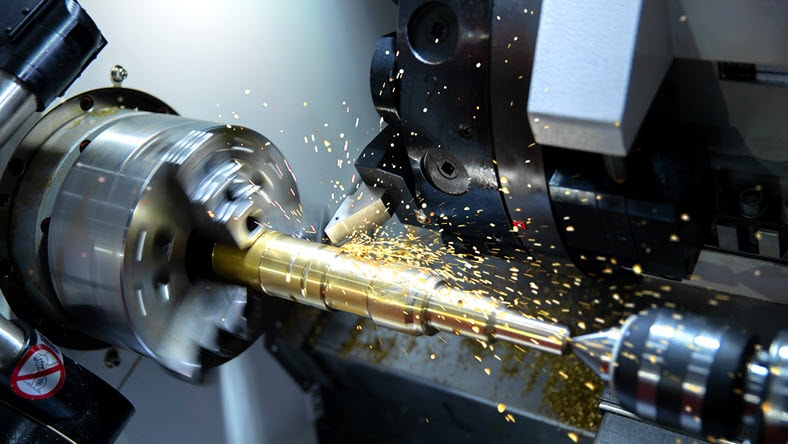

Mill/turn machines combine milling and turning into a single machining center. These machines can create spun profiles like lathes.

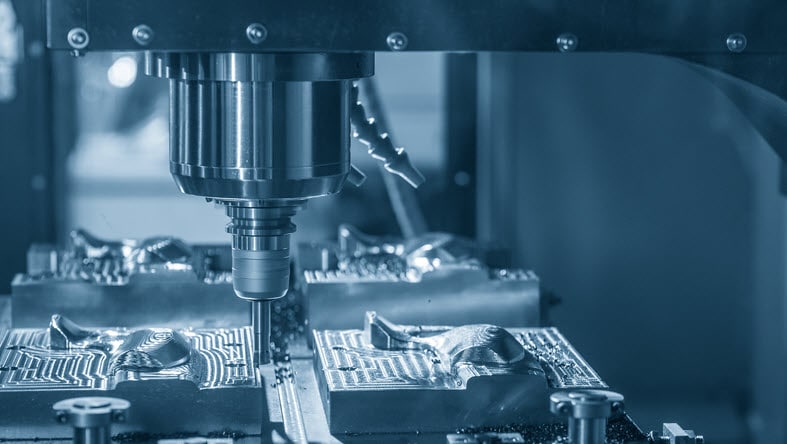

Milling machines are versatile and come in various configurations from 2- to 5-axis milling configurations.

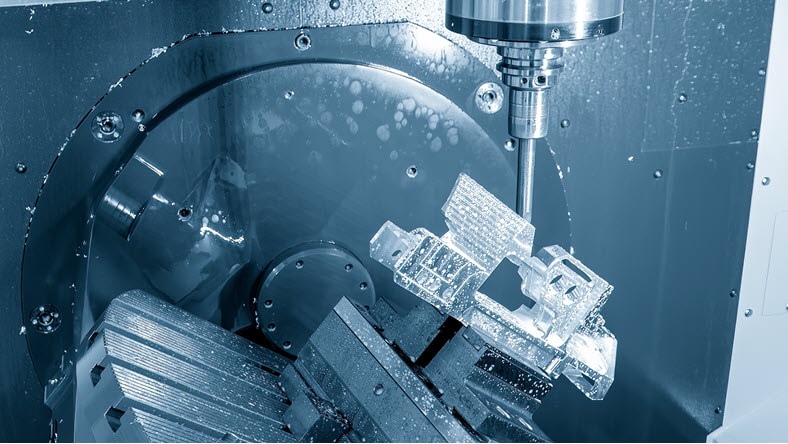

Multi-axis milling is the addition of up to two rotational axes to a 3-axis milling configuration. This allows access to more of the part.

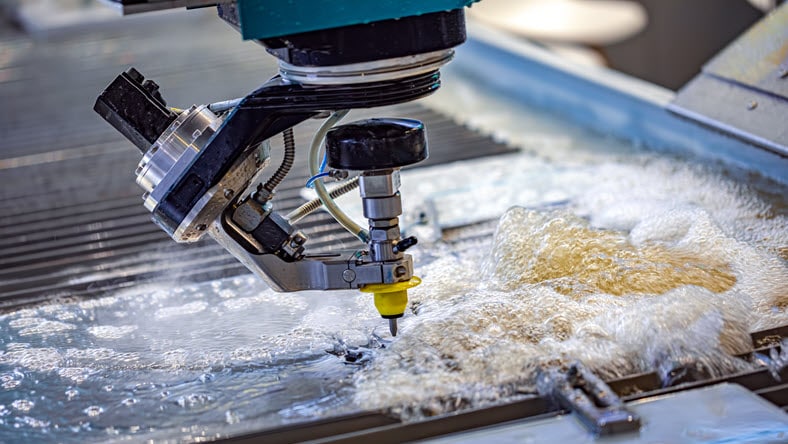

CNC waterjet cutters combine high-pressure water with an abrasive media to cut parts.
Fusion 360 is commonly used for CNC programming and is known for its integrated CAD/CAM capabilities. Fusion 360 allows users to design 3D models of parts and then generate toolpaths and G-code for CNC machining.
With Fusion 360, you can create and edit 3D models, define machining operations, and generate toolpaths for various CNC processes such as milling, turning, and routing. The software offers a range of CAM features, including toolpath strategies, simulations, post-processing, and machine tool library management.
Fusion 360's CAM functionality allows users to define cutting tools, set machining parameters such as feed rates and spindle speeds, select cutting strategies and simulate the machining process to detect and avoid collisions or errors. Once the CAM setup is complete, Fusion 360 generates the corresponding G-code, which can be sent to the CNC machine for execution.
Perform complex operations automatically and with high precision, while reducing the reliance on manual labor, minimizing human error, and increasing productivity.
CNC programming allows for efficient use of machine time allowing for optimized toolpaths, minimized idle time, and reduced material waste.
Use the same machine to produce different parts simply by changing the CNC program. This versatility allows for quick setup and adaptation to changing production needs.
Once a CNC program is created and tested, it can be used repeatedly to produce identical parts. This is important in industries where precision and quality control are critical.
Once the program is set up correctly, the machine will execute the operations precisely as programmed, reducing the risk of mistakes caused by human factors like fatigue, inattention, or skill variations.
CNC programming allows for the utilization of advanced machining techniques and capabilities. This includes high-speed machining, multi-axis machining, adaptive machining, and complex tooling arrangements.
